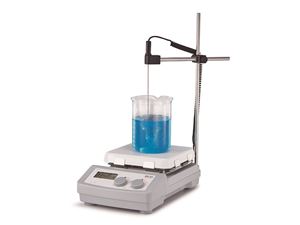

MS7-H550-Pro Hotplate Magnetic Stirrer

LCD Digital 7’’ Square Hotplate Magnetic Stirrer, glass ceramic hotplate, heating temperature up to 550°C
SKU: MS7-H550-Pro
Manufacturer: Dragon Lab
  • • LCD display for precise monitoring of speed and temperature
  • • Built-in PID controller ensures the safe heating of the medium with overheating protection
  • • Max. heating plate temperature at 550°C
  • • Glass ceramic work plate provids excellent chemicalresistant performance and most efficient heat transfer
  • • External temperature control accuracy of ±0.2℃ is possible by connecting the temperature sensor(PT 1000)
  • • Digital speed control with Max. speed at 1500rpm
  • • Outstanding brushless DC motor performance enables more stirring power
  • • Two rotating knobs enable the easy and direct change of speed and temperature
  • • The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
  • • Remote function provide PC control and data transmission



 Dimension of work plate  [W x D]

 184x184mm (7 inch)

 Work plate material

 Glass ceramic

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Power

 1050W

 Heating output

 1000W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity, [H2O]

 20L

 Max. magnetic bar[length]

 80mm

 Speed range

 100-1500rpm, resolution ±1rpm

 Speed display

 LCD

 Temperature display

 LCD

 Heating temperature range

 Room Temp.-550°C, increment 1°C

 Control accuracy of work plate

 ±1°C(<100°C) ±1%(>100°C)

 Over temperature protection

 580°C

 Temperature display accuracy

 ±0.1°C

 External temperature sensor

 PT1000 (accuracy ±0.2)

 "Hot" warning

 50°C

 Data connector

 RS232

 Protection class

 IP21

 Dimension [W x D x H]

 215x360x112mm

 Weight

 5.3kg

 Permissible ambient temperature and humidity

 5-40°C, 80%

Dragon Lab is a professional manufacturer of high-quality laboratory instruments for research. The company is dedicated to developing and manufacturing general laboratory instruments, offering researchers unmatched performance and proven value.
