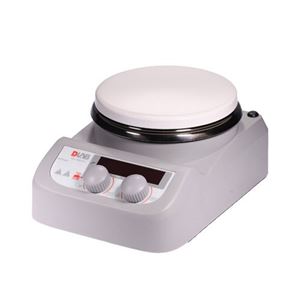

MS-H280-Pro Hotplate Magnetic Stirrer

Double LED Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 280°C

SKU: MS-H280-Pro

Manufacturer: Dragon Lab

• Digital temperature control with Max. temperature at 280°C
• Digital speed control with Max. speed up to 1500rpm
• Stainless steel work plate with ceramic coating providing good chemical-resistant performance
• External temperature control accuracy of ±0.5℃ is possible by connecting the temperature sensor(PT 1000)
• LED display shows temperature and speed
• The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off

Dimension of work plate	φ135mm ( 5 inch )
Work plate material	stainless steel cover with ceramic
Motor type	DC motor
Motor rating input	5W
Motor rating output	3W
Power	515W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity	3L
Max. magnetic bar[length]	50mm
Speed range	100-1500rpm
Speed display	LED
Temperature display	LED
Speed display resolution	±1rpm
Heating temperature range	Room temp.~280, increment 1°C
Control accuracy of work plate	±1°C(<100°C) , ±1%(>100°C)
Over temperature protection	320°C
Temperature display accuracy	±1°C
External temperature sensor	PT1000 (accuracy ±0.5°C)
"Hot" warning	50°C
Protection class	IP21
Dimension [W x D x H]	150×260×80mm
Weight	1.8kg
Permissible ambient temperature and humidity	5-40°C, 80%

Dragon Lab is a professional manufacturer of high-quality laboratory instruments for research. The company is dedicated to developing and manufacturing general laboratory instruments, offering researchers unmatched performance and proven value.

product information page download :

DispensMate Dispenser Chemical Compatibility download :

Products specifications

Pack Size	1
