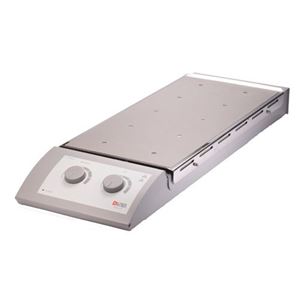

MS-H-S10 Hotplate Magnetic Stirrer

• • Maintenance-free brushless DC motor

• • Max speed 1100rpm

• • Max.temperature 120°C

• • Stainless steel work plate covered with silicone cushion, providing the excellent performance of heating uniformity and skid resistance



  Dimension of work plate [W x D]	180x450mm
  Work plate material	Stainless steel with silicone
  Motor type	Brushless DC motor
  Motor rating input	12W
  Motor rating output	4W
  Power	490W
  Heating output	470W
  Voltage	100-120/200-240V 50/60Hz
  Stirring positions	10
  Max. stirring quantity	0.4L x 10
  Max. magnetic bar[length]	40mm
  Speed range	0-1100rpm
  Speed display	scale
  Temperature display	scale
  Heating temperature range	Room temp.~120°C
  Over temperature protection	140°C
  Protection class	IP42
  Dimension [W x D x H]	182x552x65mm
  Weight	3.2kg
  Permissible ambient temperature and humidity	5-40°C, 80%
