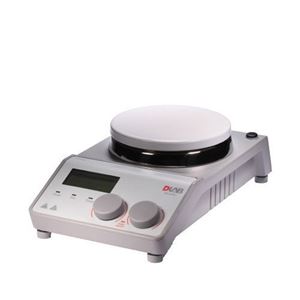

MS-H-S Hotplate Magnetic Stirrer

 Dimension of work plate

 φ135mm ( 5 inch )

 Work plate material

 stainless steel cover with ceramic

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Power

 530W

 Heating output

 500W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity [ H2O ]

 20L

 Max. magnetic bar [ length ]

 80mm

 Speed range

 0-1500rpm, resolution±1rpm

 Speed display

 Scale

 Temperature display

 Scale

 Heating temperature range

 Room temp.~340°C

 Over temperature protection

 350°C

 Temperature display accuracy

 ±0.5°C

 Timer function

 1min~99h 59min

 Protection class

 IP42

 Dimension [ W x D x H ]

 160×280×85mm

 Weight

 2.8kg

 Permissible ambient temperature and humidity

 5-40°C, 80%
