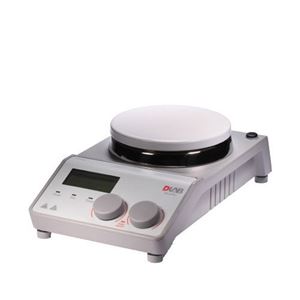

MS-H-Pro+ Hotplate Magnetic Stirrer

LCD Digital HotplateMagnetic Stirrer,stainlesssteel with ceramic coatedhotplate,heatingtemperature up to 340°C,
SKU: MS-H-Pro+
Manufacturer: Dragon Lab
  • • Maintenance-free brushless DC motor
  • • Digital temperature control with Max. temperature at 340°C
  • • Digital speed control with Max. speed up to 1500rpm
  • • Max. stirring quantity of H2O at 20L
  • • Safety circuits provide overheating protection
  • • The “HOT” warning will flash when the plate temperature is above 50°C even if the hotplate is turned off
  • • The high-resolution LCD display shows actual temperatures and speed
  • • External temperature control accuarcy of ±0.2℃ is possible by connecting the temperature sensor(PT 1000)
  • • Stainless steel work plate with ceramic coating providing good chemical-resistant performance
  • • Remote function provide PC control and data transmission
  • • A wide variety of accessories are available



 Work plate dimensions

 φ135mm ( 5 inch )

 Work plate material

 stainless steel cover with ceramic

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Power

 550W

 Heating output

 500W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity[H2O]

 20L

 Max. magnetic bar[length]

 80mm

 Speed range

 100-1500rpm, resolution±1rpm

 Speed display

 LCD

 Temperature display

 LCD

 Heating temperature range

 Room temp.~340°C, increment 1°C

 Temperature control accuracy

 ±1°C(<100°C); ±1%(>100°C)

 Over temperature protection

 360°C

 Temperature display accuracy

 ±0.1°C

 External temperature sensor

 PT1000 (accuracy ±0.2)

 Hot warning

 50°C

 Data connector

 RS232

 Protection class

 IP42

 Dimension [W x D x H]

 160×280×85mm

 Weight

 2.8kg

 Permissible ambient temperature and humidity

 5-40°C, 80%



Dragon Lab is a professional manufacturer of high-quality laboratory instruments for research. The company is dedicated to developing and manufacturing general laboratory instruments, offering researchers unmatched performance and proven value.
