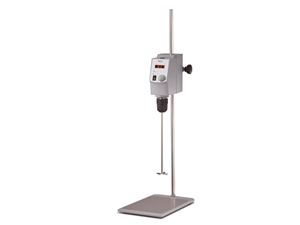

LED Digital Overhead Stirrer OS20-S

LED Digital Overhead Stirrer (Exclude universal stand), Max. stirring quantity 20L

SKU: OS20-S

Manufacturer: Dragon Lab

FEATURES

LED display of precise monitoring of speed
A wide range of speed from 50-2200rpm and max. torque of 60Ncm
RS232 interface-PC can control and document all operational values
Maintenance free brushless DC motor
Safety circuits allow for safe stop function in anti-stall or overload conditions
Max. stirring quantity is 20L with a max. viscosity of 10000mPas

Max. stirring quantity[H2O]	20L
Motor type	Brushless DC motor
Motor input power	60W
Motor output power	50W
Voltage	100-240V, 50/60 Hz
Power	70W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LED
Overload protection display	LED lights
Max. torque	40Ncm
Viscosity max.	10000mPas
Chuck range diameter	0.5-10mm
Dimension[W×H×D]	83×220×186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40℃, 80%RH
