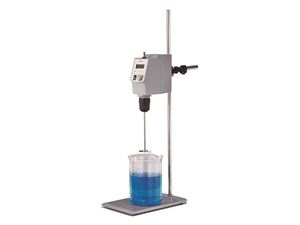

LCD Digital Enhanced Overhead Stirrer OS40-Pro

LCD Digital Enhanced Overhead Stirrer (Exclude universal stand), Max. stirring quantity 40L

SKU: OS40-Pro

Manufacturer: Dragon Lab

FEATURES

LCD digital display of speed and time
Precise monitoring of set and actual speeds
High reliability and outstanding performance
Maintenance free brushless DC motor for smooth operation
Torque trennd display for real time information on viscosity changes
A wide range of speeds from 50-2200rpm with control accuracy of ±3rpm
Max. Stirring quantity is 40L and safety circuits allow for safe stop function in overload conditions
Remote function provides PC control and data transmission

Max. stirring quantity [H2O]	40L
Motor type	Brushless DC motor
Motor input power	120W
Motor output power	100W
Voltage	100-220V, 50/60 Hz
Power	130W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LCD
Torque display	LCD
Overload protection display	LED lights
Max. torque	60Ncm
Viscosity max.	50000mPas
Chuck range diameter	0.5-10mm
Dimensions[W×H×D]	83×220×186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40 C, 80%RH
Data connector	RS232
