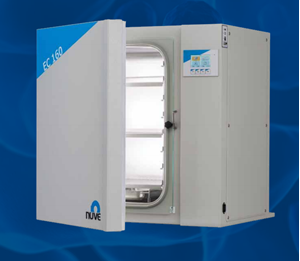

Laboratory Equipment EC 160 CO2 Incubator EC 160

With its clean chamber conception of rounded corners, no crevices (even in the racking system) for contaminants to hide and with gentle air circulation, the EC 160 is designed to resist contamination and protect your valuable cultures. Fast temperature recovery, without any overshoot continues this substantial protection.

A comprehensive control system keeps the user fully informed with display of set and actual parameter values. Should any alarm situation occur, a variety of alerts can be invoked. Optional AlerText™ will send a text message to you anywhere in the world and could include the NÜVE service support for fast response.

Wet disinfection by NüveDis™ ensures a clean chamber. Removing the shelves and racks (only 20 seconds!) permits use of the nUVeray™ ultra-violet option that can achieve sterilization in a very short time.

• • Chamber volume: 160 liters
• • Temperature range: Ambient temperature +7 ºC to 50 ºC
• • Temperature variation / fluctuation: ±0.3 ºC at 37 ºC / ±0.1 ºC
• • Programmable temperature alarm range:±0.5 ºC to 5 ºC
• • Air jacketed heating system
• • RaPIDcell™ fast temperature recovery without overshoot
• • CO₂ Range: 0 to 20 % CO₂
• • CO₂ Variation / Fluctuation: ±0.3 % / ±0.1%
• • Programmable CO₂ alarm range: ±0.5 % to 5.0%
• • Infra-Red CO₂ level control permitting frequent access
• • LifeCell™ control software to optimize parameters
• • Large, bright LCD display with text messages and help
• • Simultaneous display of set and actual values
• • Seamless stainless steel chamber with rounded corners
• • Clean chamber without any sensor inside
• • NüveDis™ 90 ºC wet disinfection system
• • NüveTrack™ monitoring and recall of last 72 h parameter values and alarms
• • Auto Zero every 12 minutes for permanent accurate control
• • 0.22µm sterile filtration of CO₂, sampled gases and Auto-Zero reference air
• • Typical 95% RH to protect cultures against dehydration
• • Audible and visual alarms, remote alarm relay
• • Remote alarm outlet
• • Built-in 2nd stage gas regulator
• • Three shelves
• • Humidity tray

Optimized dimensions provide a capacity of close to 200 Petri dishes of 90 mm diameter or a larger number of culture flasks than you would expect from a chamber of this volume.
